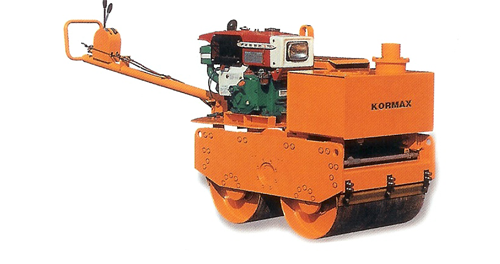

Vibration Roller | Walk - behind Tandem Vibration Roller

Kormax’s small-size double drum vibration roller is used to compact all types of soils, asphalt and rockfills on road making and industrial small jobs.
It is primarily used for small-scale compaction or repair work such as pavements, cycle paths, small roads and small parking areas.

Vibration Roller | Walk - behind Tandem Vibration Roller

MODEL	KVR-600	KVR-900
OPERATING WEIGHT	640KGS	750KGS
DRUM SIZE (DIA x WIDTH)	405mm x 550mm	405mm x 700mm
OVERALL SIZE (L x W x H)	2,390mm x 685mm x 1,070mm	2,710mm x 840mm x 1,100mm
ENGINE	DAEDONG DIESEL ND130DI(E)	DAEDONG DIESEL ND130DI(E)
POWER OUTPUT	13HP/2400RPM	13HP/2400RPM
DISPLACEMENT	673CC	673CC
TRAVEL SPEED	0~5Km/h	0~5Km/h
GRADEABILITY	25^o	25^o
VIBRATORY DRUM	FRONT + REAR	FRONT + REAR
FREQUENCY	60Hz	60Hz
AMPLITUDE (FRONT/REAR)	0.1/0.1mm	0.1/0.1mm
CENTRIFUGAL FORCE EACH DRUM	2TON	3TON
WATER TANK CAPACITY	30LITRE	60LITRE
