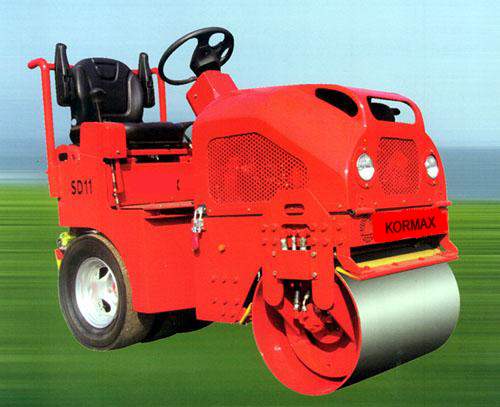

Vibration Roller  |  Combi - vibratory Roller

Kormax¡¯s combi-vibratory roller series are specially designed for repair work on asphalt, but can be used for paving small streets, sidewalks and bicycle trails as well.
It can be used as a complement to large rollers for compacting cross-joints and limited spaces.
Kormax¡¯s combi-vibratory roller series are excellent when compacting thin asphalt layers and soft asphalt compounds

Vibration Roller  |  Combi - vibratory Roller


MODEL

KVR-SD11

KVR-SD13

KVR-SD16

KVR-SD25

OPERATING WEIGHT

1,040KGS

1,350KGS

1,650KGS

2,405KGS

FRONT WHEEL LOAD

574KGS

750KGS

990KGS

1,220KGS

REAR WHEEL LOAD

400KGS

600KGS

660KGS

1,185KGS

MAX. SPEED

6Km/h

 6Km/h

8.2Km/h

11Km/h

VPM

3,600

3,600

3,000

3,300

FREQUENCY

60Hz

60Hz

50Hz

55Hz

HEAVY SHOCK

1,892KGS

1,892KGS

2,100KGS

4,200KGS

CENTRIFUGAL FORCE

18.5kN

18.5kN

21kN

41kN

GRADEABILITY

23o

23o

24o

22o

OVERALL SIZE (L x W x H)

1,800 x 800 x 1,480mm

1,895 x 900 x 1650mm

2,310 x 1,000 x 1,650mm

2,400 x 1,082 x 2,330mm

MAX. OUTPUT

18PS/3400RPM

19HP/2700RPM

26PS/2600RPM

33.4PS/2700RPM

MAX. TORQUE

4.5PS/2200RPM

5.5PS/1900RPM

8.7kg.h/1600RPM

10.44kg.h/1600RPM

FUEL

GASOLINE

DIESEL

DIESEL

DIESEL

BATTERY

12V

12V

12V

12V

FRONT WHEEL

500 x 700mm

505 x 900mm

900 x 600mm

1,000 x 708mm

REAR WHEEL

500 x 12PL-8PR

500 x 12LT-8PR

500 x 12LT-8PR

205/60R15

OIL CAPACITY

20LITRE

60LITRE

95LITRE

185LITRE

TURNING RADIUS

2,100mm

2,120mm

2,700mm

3,850mm

STEERING SYSTEM

ARTICULATED

ARTICULATED

ARTICULATED

ARTICULATED

STEERING METHOD

HYDRAULIC

HYDRAULIC

HYDRAULIC

HYDRAULIC

STEERING ANGLE

+/- 30 DEGREE

+/- 38 DEGREE

+/- 38 DEGREE

+/-35 DEGREE
